Google Congestion control 的实现分析之一

March 2, 2022 by walter

Overview

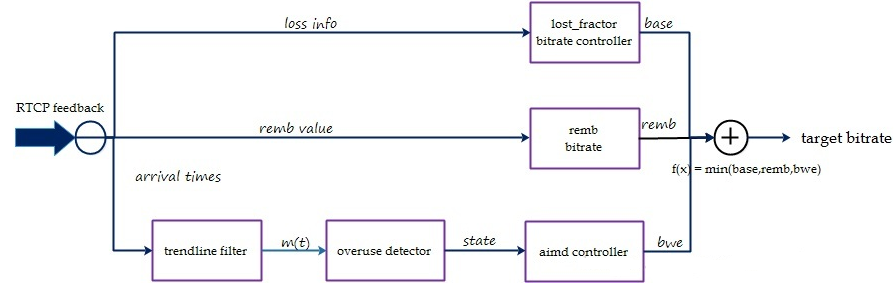

影响因素有 Packet loss, RTT 和 OWDV(One Way Delay Varion)

• 基于丢包的控制器：以丢包率， RTT 和 REMB 消息来估算一个目标发送码率

• 基于延迟的控制器：以包的到达信息，或者在接收方，或者在发送方接收反馈，估算一个最大的码率，然后传送给基于丢包的控制器

基于丢包的估算是保底的，丢包率大于 10% 就往下降码率，小于 2% 就往上升码率

基于延迟的控制器一开始用的是 Kalman filter, 后来改为 Trendline filter , 便于预测网络变化的趋势

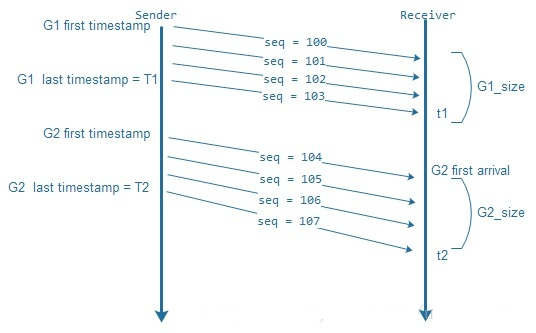

Trendline filter 的输入参数有

Main interface

// NetworkControllerInterface is implemented by network controllers. A network
// controller is a class that uses information about network state and traffic
// to estimate network parameters such as round trip time and bandwidth. Network
// controllers does not guarantee thread safety, the interface must be used in a
// non-concurrent fashion.
    class NetworkControllerInterface {
    public:
      virtual ~NetworkControllerInterface() = default;

      // Called when network availabilty changes.  -- 当网络有效或无效时
      ABSL_MUST_USE_RESULT virtual NetworkControlUpdate OnNetworkAvailability(NetworkAvailability) = 0;
      // Called when the receiving or sending endpoint changes address.  -- 当网络地址更改时
      ABSL_MUST_USE_RESULT virtual NetworkControlUpdate OnNetworkRouteChange(NetworkRouteChange) = 0;
      // Called periodically with a periodicy as specified by
      // NetworkControllerFactoryInterface::GetProcessInterval.  -- 定时回调，以检查网络
      ABSL_MUST_USE_RESULT virtual NetworkControlUpdate OnProcessInterval( ProcessInterval) = 0;
      // Called when remotely calculated bitrate is received.    -- 当收到 REMB RTCP 消息时回调
      ABSL_MUST_USE_RESULT virtual NetworkControlUpdate OnRemoteBitrateReport(RemoteBitrateReport) = 0;
      // Called round trip time has been calculated by protocol specific mechanisms.  -- 当 RTT 更改时回调（可通过 RTCP RR）
      ABSL_MUST_USE_RESULT virtual NetworkControlUpdate OnRoundTripTimeUpdate(RoundTripTimeUpdate) = 0;
      // Called when a packet is sent on the network.  -- 当发出一个 RTP 包时
      ABSL_MUST_USE_RESULT virtual NetworkControlUpdate OnSentPacket(SentPacket) = 0;
      // Called when a packet is received from the remote client. -- 当收到一个 RTP 包时
      ABSL_MUST_USE_RESULT virtual NetworkControlUpdate OnReceivedPacket(ReceivedPacket) = 0;
      // Called when the stream specific configuration has been updated.  -- 当有流相关的配置更新时
      ABSL_MUST_USE_RESULT virtual NetworkControlUpdate OnStreamsConfig(StreamsConfig) = 0;
      // Called when target transfer rate constraints has been changed.  -- 当目标速率约束更改时
      ABSL_MUST_USE_RESULT virtual NetworkControlUpdate OnTargetRateConstraints(TargetRateConstraints) = 0;
      // Called when a protocol specific calculation of packet loss has been made.  -- 当收到 TransportLossReport 时
      ABSL_MUST_USE_RESULT virtual NetworkControlUpdate OnTransportLossReport(TransportLossReport) = 0;
      // Called with per packet feedback regarding receive time.  -- 当收到 TransportPacketsFeedback 时
      ABSL_MUST_USE_RESULT virtual NetworkControlUpdate OnTransportPacketsFeedback(TransportPacketsFeedback) = 0;
      // Called with network state estimate updates. -- 当网络状态估计更新时，还在开发中
      ABSL_MUST_USE_RESULT virtual NetworkControlUpdate OnNetworkStateEstimate(NetworkStateEstimate) = 0;
    };

Main Flow

Bandwidth Probe

• class ProbeController
• class ProbeBitrateEstimator

s=>start: start
e=>end: end
OnNetworkAvailability1=>operation: GoogCcNetworkController::OnNetworkAvailability
OnNetworkAvailability2=>operation: ProbeController::OnNetworkAvailability
is_available=>condition: is network available
InitiateExponentialProbing=>operation: ProbeController::InitiateExponentialProbing
InitiateProbing=>operation: ProbeController::InitiateProbing: 900k, 1.8m

s->OnNetworkAvailability1->OnNetworkAvailability2->is_available
is_available(yes)->InitiateExponentialProbing->InitiateProbing->e
is_available(no)->e

GoogCcNetworkController 是核心类

class NetworkControllerTestFixture {
 public:
  NetworkControllerTestFixture() : factory_() {}

  std::unique_ptr<NetworkControllerInterface> CreateController() {
    NetworkControllerConfig config = InitialConfig();
    std::unique_ptr<NetworkControllerInterface> controller =
        factory_.Create(config);
    return controller;
  }

 private:
  NetworkControllerConfig InitialConfig(
      int starting_bandwidth_kbps = kInitialBitrateKbps,
      int min_data_rate_kbps = 0,
      int max_data_rate_kbps = 5 * kInitialBitrateKbps) {
    NetworkControllerConfig config;
    config.constraints.at_time = Timestamp::Millis(0);
    config.constraints.min_data_rate =
        DataRate::KilobitsPerSec(min_data_rate_kbps);
    config.constraints.max_data_rate =
        DataRate::KilobitsPerSec(max_data_rate_kbps);
    config.constraints.starting_rate =
        DataRate::KilobitsPerSec(starting_bandwidth_kbps);
    config.event_log = &event_log_;
    return config;
  }

  NiceMock<MockRtcEventLog> event_log_;
  GoogCcNetworkControllerFactory factory_;
};

TEST(GoogCcNetworkControllerTest, InitializeTargetRateOnFirstProcessInterval) {
  NetworkControllerTestFixture fixture;
  std::unique_ptr<NetworkControllerInterface> controller =
      fixture.CreateController();

  NetworkControlUpdate update =
      controller->OnProcessInterval({.at_time = Timestamp::Millis(123456)});

  EXPECT_EQ(update.target_rate->target_rate, kInitialBitrate);
  EXPECT_EQ(update.pacer_config->data_rate(),
            kInitialBitrate * kDefaultPacingRate);
  EXPECT_EQ(update.probe_cluster_configs[0].target_data_rate,
            kInitialBitrate * 3);
  EXPECT_EQ(update.probe_cluster_configs[1].target_data_rate,
            kInitialBitrate * 5);
}

run the uni test case

./out/Default/modules_unittests --gtest_filter=GoogCcNetworkControllerTest.InitializeTargetRateOnFirstProcessInterval
(field_trial.cc:140): Setting field trial string:
Note: Google Test filter = GoogCcNetworkControllerTest.InitializeTargetRateOnFirstProcessInterval
[==========] Running 1 test from 1 test suite.
[----------] Global test environment set-up.
[----------] 1 test from GoogCcNetworkControllerTest
[ RUN      ] GoogCcNetworkControllerTest.InitializeTargetRateOnFirstProcessInterval
(alr_experiment.cc:79): Using ALR experiment settings: pacing factor: 1, max pacer queue length: 2875, ALR bandwidth usage percent: 80, ALR start budget level percent: 40, ALR end budget level percent: -60, ALR experiment group ID: 3
(trendline_estimator.cc:185): Using Trendline filter for delay change estimation with settings sort:false,cap:false,beginning_packets:7,end_packets:7,cap_uncertainty:0,window_size:20 and no network state predictor
(trendline_estimator.cc:185): Using Trendline filter for delay change estimation with settings sort:false,cap:false,beginning_packets:7,end_packets:7,cap_uncertainty:0,window_size:20 and no network state predictor
(aimd_rate_control.cc:112): Using aimd rate control with back off factor 0.85
(delay_based_bwe.cc:88): Initialized DelayBasedBwe with separate audio overuse detectionenabled:false,packet_threshold:10,time_threshold:1 s and alr limited backoff disabled
(delay_based_bwe.cc:301): BWE Setting start bitrate to: 60 kbps
PLOT    1   fraction_loss_%:0@- 123.456000  0.000000
PLOT    1   rtt_ms:0@-  123.456000  0.000000
PLOT    1   Target_bitrate_kbps:0@- 123.456000  60.000000
[       OK ] GoogCcNetworkControllerTest.InitializeTargetRateOnFirstProcessInterval (1 ms)
[----------] 1 test from GoogCcNetworkControllerTest (1 ms total)

[----------] Global test environment tear-down
[==========] 1 test from 1 test suite ran. (2 ms total)
[  PASSED  ] 1 test.

RTCP message 由 TransportFeedbackAdapter 解析

absl::optional<TransportPacketsFeedback> TransportFeedbackAdapter::ProcessTransportFeedback(
    const rtcp::TransportFeedback& feedback,
    Timestamp feedback_receive_time) {
  if (feedback.GetPacketStatusCount() == 0) {
    RTC_LOG(LS_INFO) << "Empty transport feedback packet received.";
    return absl::nullopt;
  }

  TransportPacketsFeedback msg;
  msg.feedback_time = feedback_receive_time;

  msg.prior_in_flight = in_flight_.GetOutstandingData(network_route_);
  msg.packet_feedbacks =
      ProcessTransportFeedbackInner(feedback, feedback_receive_time);
  if (msg.packet_feedbacks.empty())
    return absl::nullopt;

  auto it = history_.find(last_ack_seq_num_);
  if (it != history_.end()) {
    msg.first_unacked_send_time = it->second.sent.send_time;
  }
  msg.data_in_flight = in_flight_.GetOutstandingData(network_route_);

  return msg;
}

将 RTCP 消息转化为 TransportPacketsFeedback

struct TransportPacketsFeedback {
  TransportPacketsFeedback();
  TransportPacketsFeedback(const TransportPacketsFeedback& other);
  ~TransportPacketsFeedback();

  Timestamp feedback_time = Timestamp::PlusInfinity();
  Timestamp first_unacked_send_time = Timestamp::PlusInfinity();
  DataSize data_in_flight = DataSize::Zero();
  DataSize prior_in_flight = DataSize::Zero();
  std::vector<PacketResult> packet_feedbacks;

  // Arrival times for messages without send time information.
  std::vector<Timestamp> sendless_arrival_times;

  std::vector<PacketResult> ReceivedWithSendInfo() const;
  std::vector<PacketResult> LostWithSendInfo() const;
  std::vector<PacketResult> PacketsWithFeedback() const;
  std::vector<PacketResult> SortedByReceiveTime() const;
};

可以通过这个单元测试来理解这个结构和流程

./out/Default/modules_unittests --gtest_filter="GoogCcNetworkControllerTest.*"

./out/Default/modules_unittests --gtest_filter=GoogCcNetworkControllerTest.UpdatesDelayBasedEstimate

./out/Default/modules_unittests --gtest_filter=TransportFeedbackAdapterTest.AdaptsFeedbackAndPopulatesSendTimes

class TransportFeedbackAdapterTest : public ::testing::Test {
 public:
  TransportFeedbackAdapterTest() : clock_(0) {}

  virtual ~TransportFeedbackAdapterTest() {}

  virtual void SetUp() {
    adapter_.reset(new TransportFeedbackAdapter(&clock_));
  }

  virtual void TearDown() { adapter_.reset(); }

 protected:
  void OnReceivedEstimatedBitrate(uint32_t bitrate) {}

  void OnReceivedRtcpReceiverReport(const ReportBlockList& report_blocks,
                                    int64_t rtt,
                                    int64_t now_ms) {}

  void OnSentPacket(const PacketFeedback& packet_feedback) {
    adapter_->AddPacket(kSsrc, packet_feedback.sequence_number,
                        packet_feedback.payload_size,
                        packet_feedback.pacing_info);
    adapter_->OnSentPacket(packet_feedback.sequence_number,
                           packet_feedback.send_time_ms);
  }

  static constexpr uint32_t kSsrc = 8492;

  SimulatedClock clock_;
  std::unique_ptr<TransportFeedbackAdapter> adapter_;
};

Unit test

 ./modules_unittests --gtest_filter="GoogCc*" --gtest_output="xml:goog-cc-ut-report.xml"
gtest2html.py --input=./goog-cc-ut-report.xml --output=goog-cc-ut-report.md

Test suite: GoogCcNetworkControllerTest

• tests=6, failures=0, errors=0, disabled=0, time=0.076

Test suite: GoogCcScenario

• tests=20, failures=0, errors=0, disabled=0, time=22.666
